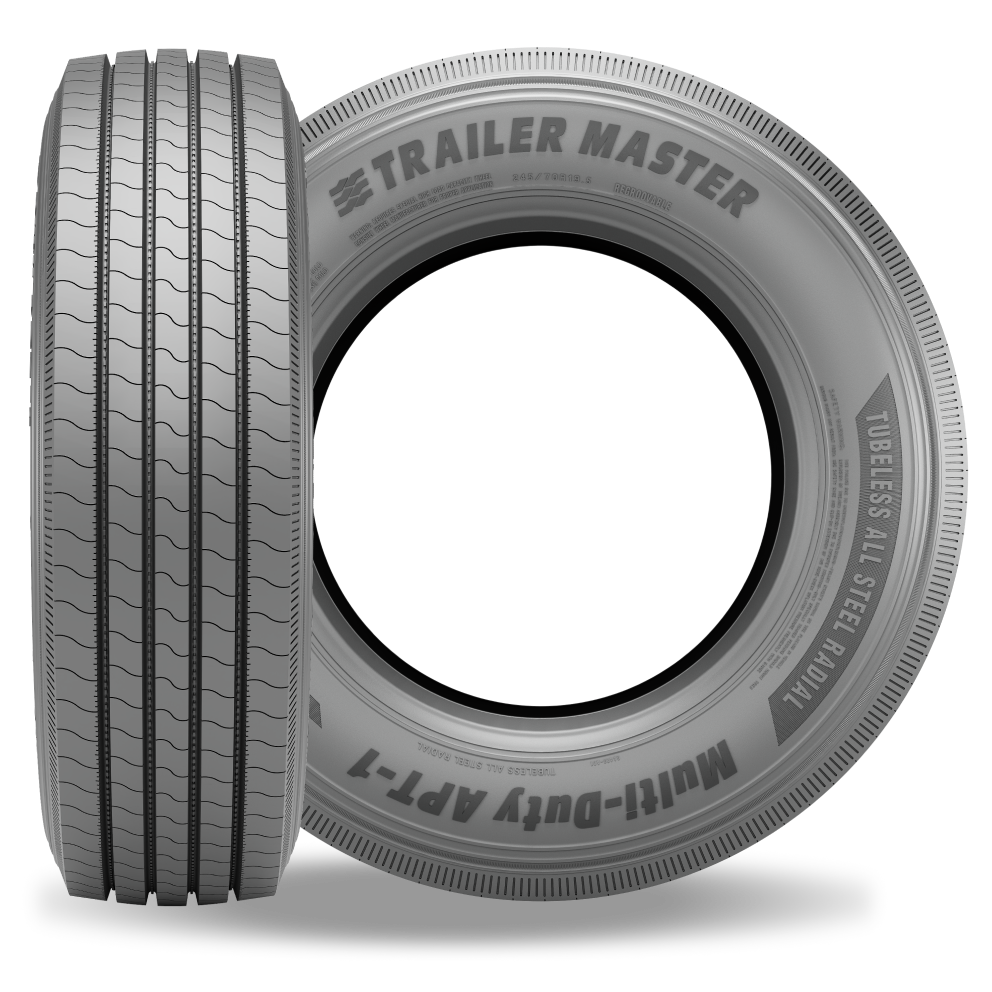

MULTI-DUTY APT-1

Designed with all-steel construction in both the sidewall and tread, the Multi-Duty APT-1 offers exceptional durability under heavy loads. Its multi-sipes enhance traction in wet conditions and help dissipate heat, extending tread life. Additionally, wide grooves reduce hydroplaning and rolling resistance, ensuring a safer and smoother ride.

Part Number	Size	Load Range	L.S.	OD INCH	SW INCH	Measuring Rim Width	Approved Rim Width	Single tire Max load	Dual tire Max load	Max PSI	SidewalL
TM20	215/75R17.5	H	135/133L	30.20	8.31	6	6.00,6.75	4805	4540	123	BLK
TM22	225/70R19.5	G	128/126M	31.93	8.9	6.75	6.00,6.75	3970	3750	110	BLK
TM21	235/75R17.5	J	143/141J	31.37	9.17	6.75	6.75,7.50	6005	5675	127	BLK
TM23	245/70R19.5	H	135/133M	33.03	9.76	7.5	6.75,7.50	4805	4540	120	BLK
TM25	255/70R22.5	H	140/137M	36.61	10.04	7.5	6.75,7.50,8.25	5510	5070	120	BLK

*Every effort has been made to verify the accuracy of the listed specifications.Transamerica Tire cannot be held responsible for any discrepancies,and as such the information should be considered as approximate.
